The 900BPH Triton Line: Redefine Efficiency in Bottling
Engineered for medium to large-scale plants demanding peak output and lower cost per bottle. Our integrated 3-in-1 monoblock delivers up to 1000 BPH in a footprint that beats conventional lines.
- Space-Smart Design: Integrated system saves up to 30% floor space versus split configuration.
- Throughput Leap: 50% more capacity than standard 600BPH lines, maximizing your ROI.
- Intelligent Operation: Advanced PLC synchronization ensures precision at high speed.
Get A Free Quote Get the Latest Product Catalog

A Complete, Cohesive Production Line

Explore the integrated components of the 900BPH standard solution. From initial bottle handling to final packaging, each machine is engineered to work seamlessly with the next, ensuring smooth, efficient, and reliable operation from start to finish.

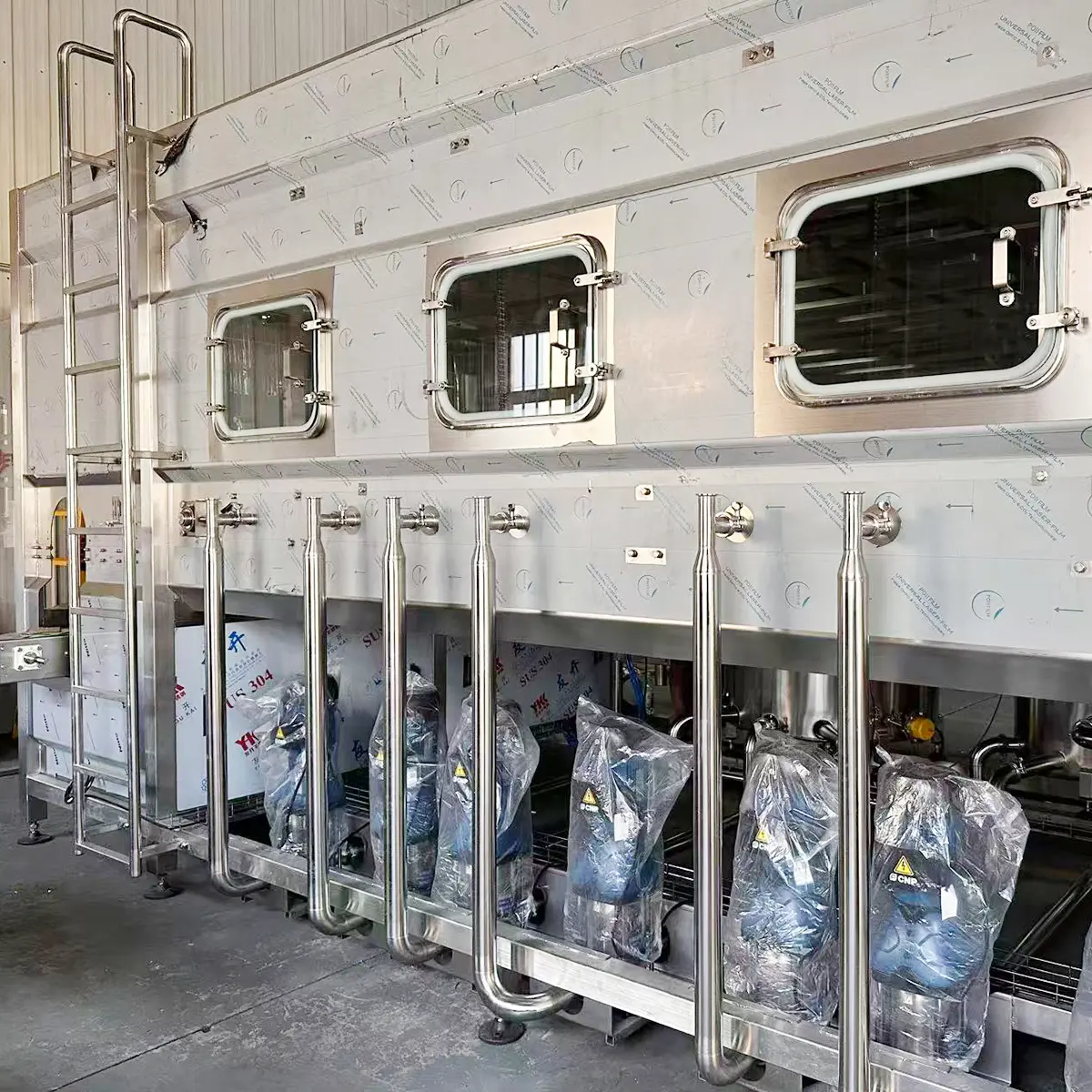

Washing, Filling and Sealing Machine
- Inlet Water Pressure
  0.15MPa
- Dimensions
  8478*2180*2277
- Filling Water Consumption
  13T/H
Learn More

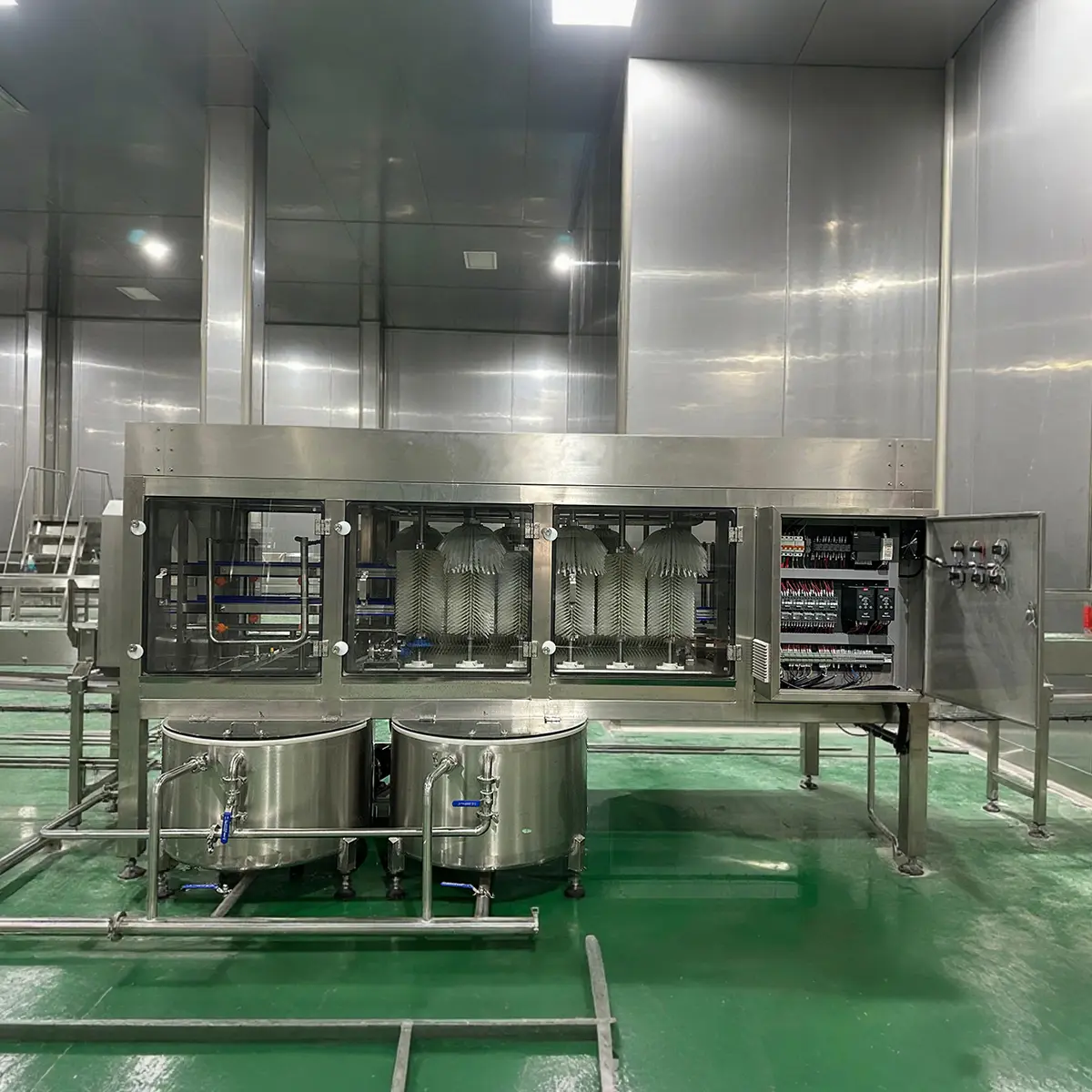

External Washing Machine
- Dimensions
  2400×1200×1880mm
- Total Power
  3.5KW*400V/50HZ/3P
- Weight
  500KG
Learn More

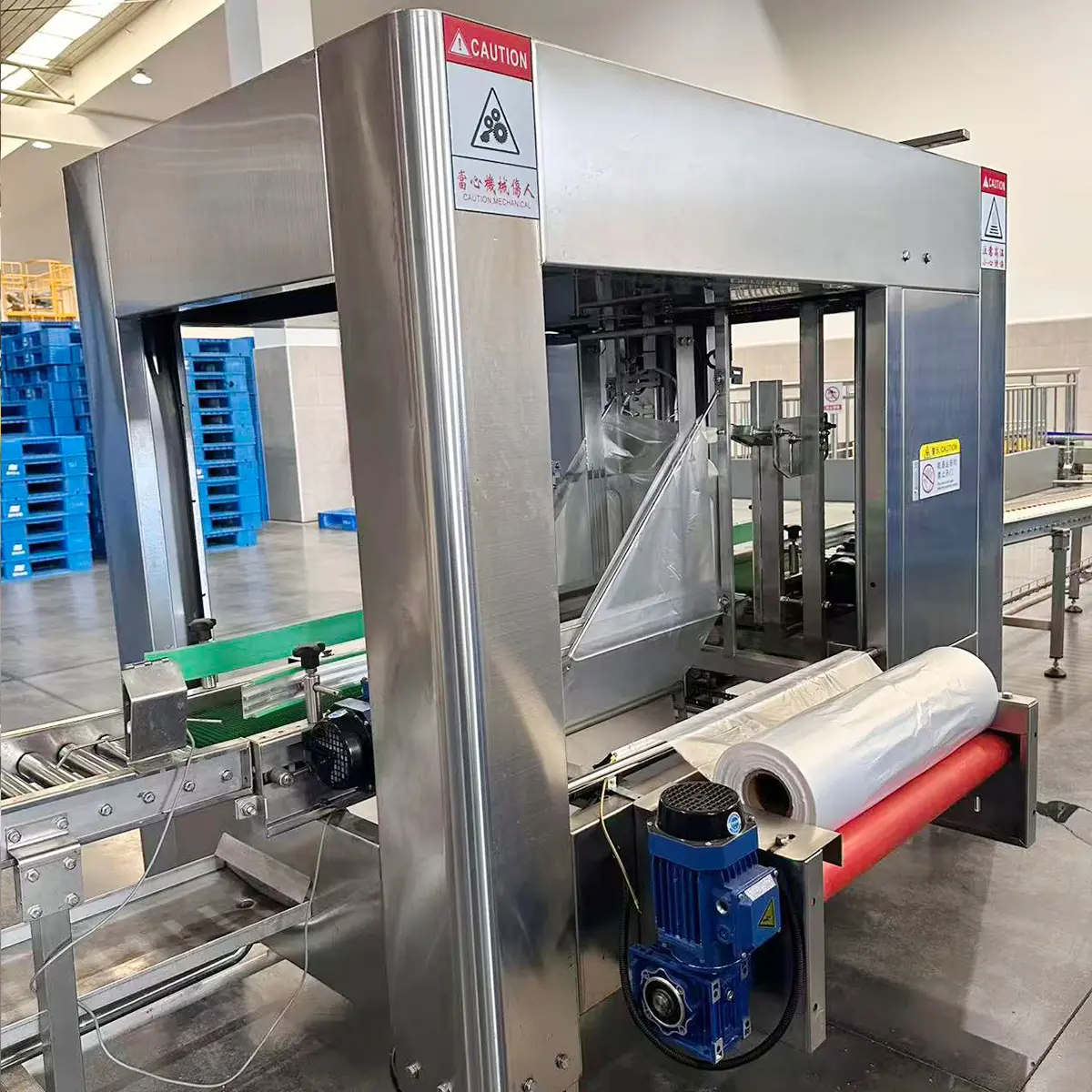

Bagging Machine
- Film roll width
  520-680mm (open double layer)
- Film roll inner diameter
  >100mm
- Power supply
  380V 3.0KW
Learn More
Film Cutting and Capping Machine
- Sensor
  Omron Optoelectronics
- PLC
  Mitsubishi
- Touchscreen
  Weintek
Learn More

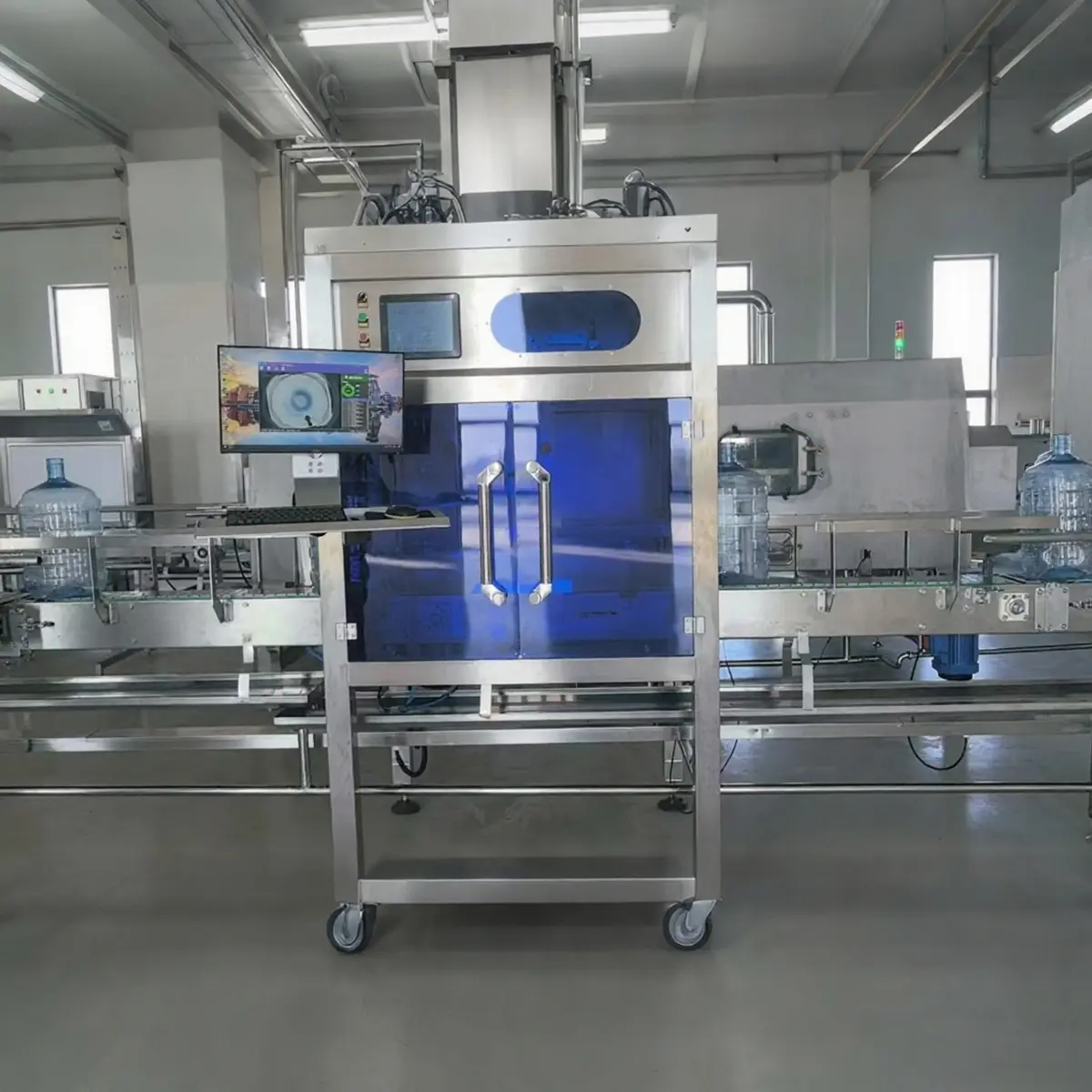

Intelligent Foreign Object and Odor Detection Machine
- Dimensions
  1400*1860*1900mm
- Total Power
  3KW 400V/50HZ/3P
- Weight
  380KG
Learn More
Power Conveyor System
- Conveying speed
  13.6 m/min (mechanical speed regulation)
- Conveying load
  100 kg/m
Learn More

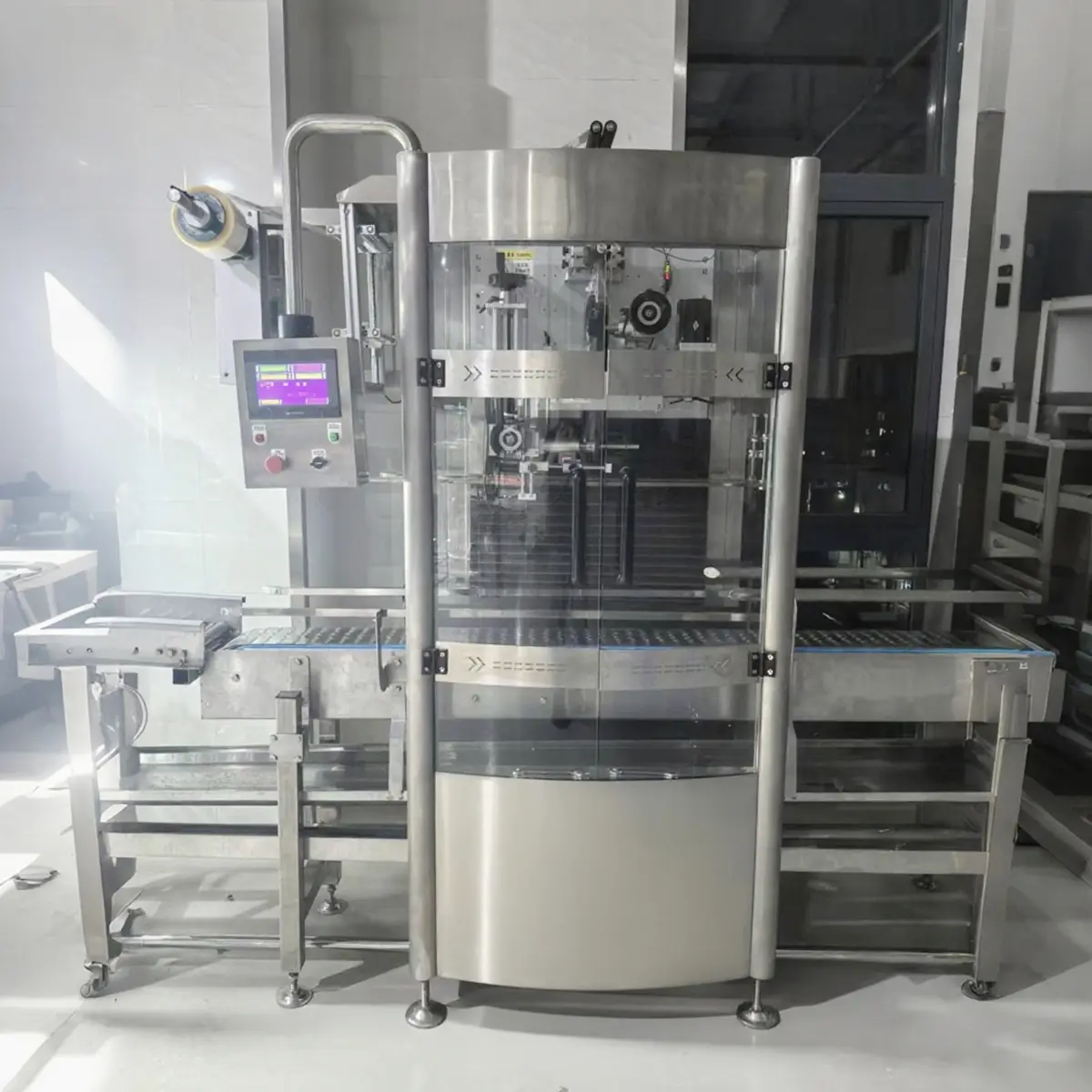

Sleeve Labeling Machine
- Label Material Types
  PVC / PET / OPS
- Equipment Weight (KG)
  380
- Main Unit Dimensions (mm)
  2000*900*2000
Learn More

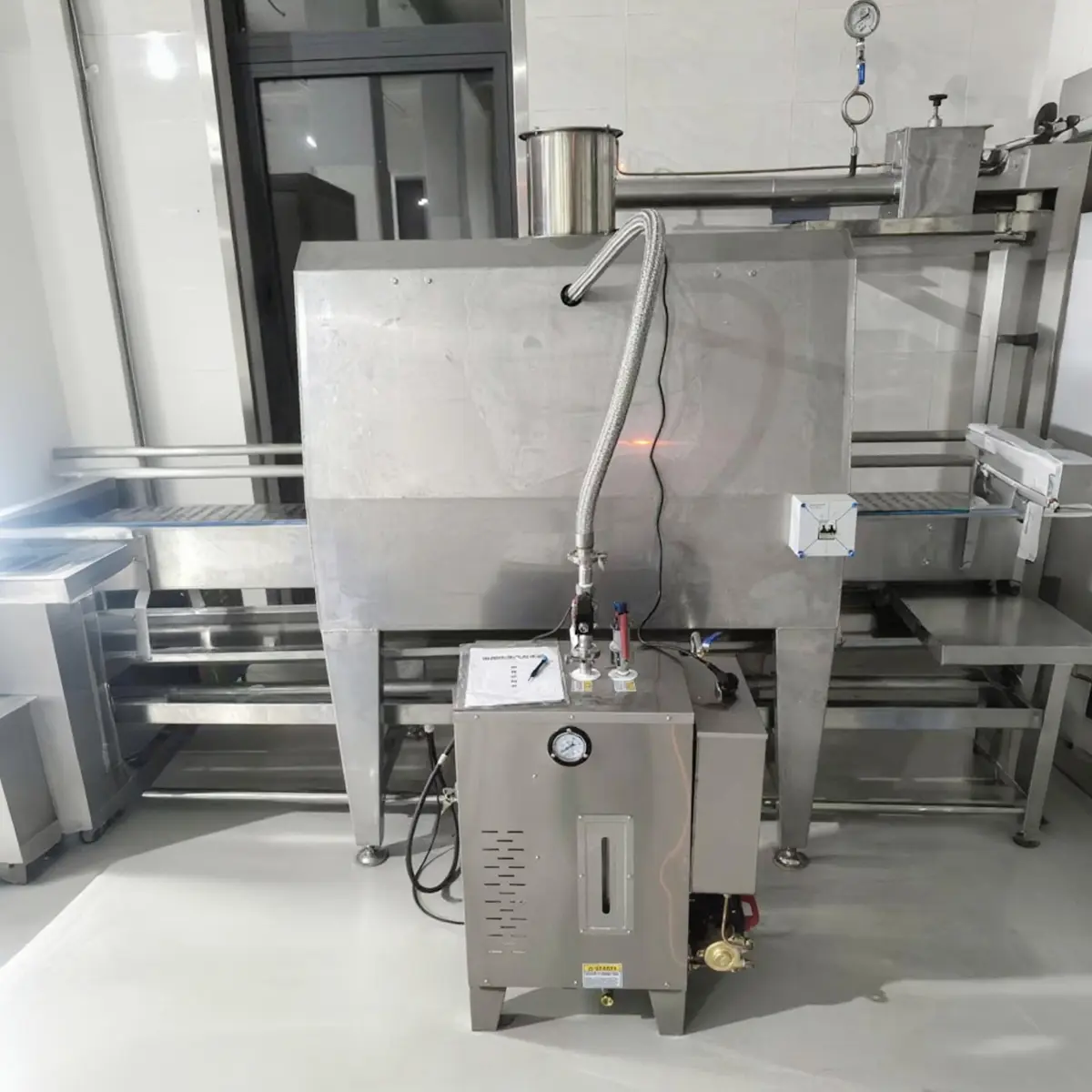

Heat Shrink Machine
- Dimensions
  605×365×645
- Weight
  Approximately 80kg
- Water capacity
  8L
Learn More

Setting the Standard for High-Volume Production
The Triton line isn’t just faster; it’s smarter. Precision controls and premium mechanics ensure peak performance is sustainable, not just theoretical.
- Rated Output: 900 - 1000 BPH
- Line Efficiency: ≥92%
- Filling Accuracy: ≥99.7%
- Utility Efficiency: Water Consumption: ≤6 T/H
Quote Now

Is the 900 BPH Line Right for You?

Find possible answers below or contact our sales team for any questions.

We need to minimize disruption during installation and training. How is this managed?

Phased Implementation & On-Site Mastery. We offer staggered installation plans and immersive training for your engineers to ensure a smooth transition with our project management.

Is this line future-proof? Can we integrate with our ERP or expand capacity later?

Built on an Expandable Architecture. The system is designed with modularity in mind and offers standard data export ports (OPC UA, MQTT) for easy integration with your ERP/MES systems.

How do you guarantee the longevity and maintenance of such a high-speed system?

Predictive Support & Global Parts Assurance. Beyond warranty, we offer subscription-based remote monitoring and maintain a global inventory of critical wear parts for expedited shipping.

Engineer Your Peak-Efficiency Line

A high-output line is a strategic investment. Let our engineering team provide a detailed feasibility analysis and a customized layout for your facility.
